Equipment Features

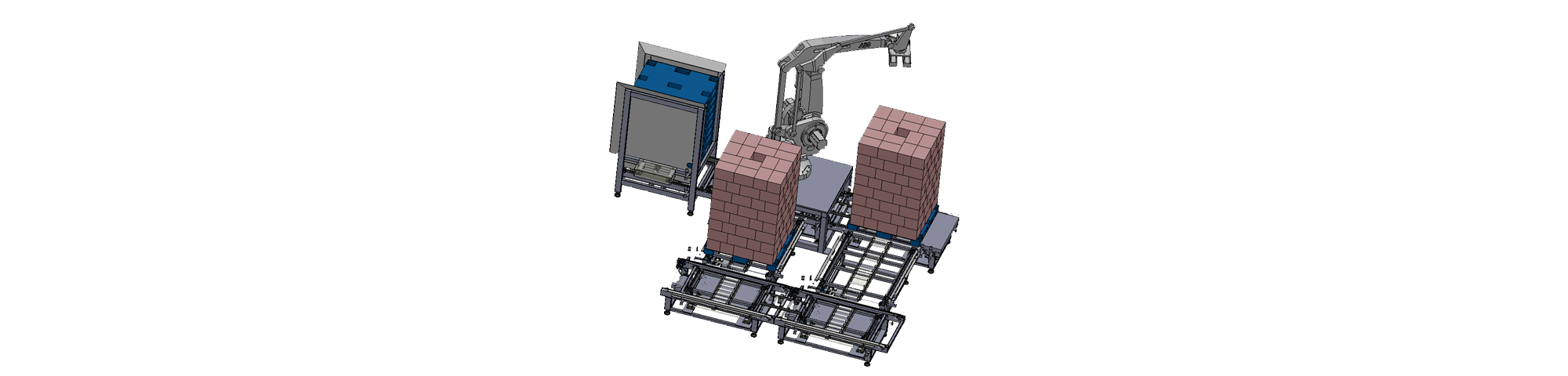

Full-automatic robot arm palletizer with its characterized structure and performance to realize high speed picking up and putting motion. It will complete a full-automatic production line without labor. Pallets magazine output empty pallets automatically. Palletizer can connect with 1-3 sets case packer, sort and stack to pallets automatically (according to robot model), Automatic shrink wrapping after palletizing (optional device).
Machine model：RS-PL660
Robot model：660

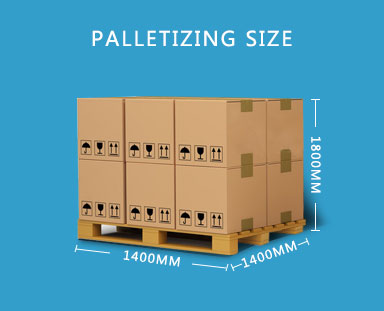

Palletizing height：Maximum 2.0m
Working Diameter：Maximum 6.6m (according to palletizing height)
Palletizing length：Maximum 1.4m
Palletizing width：Maximum 1.4m

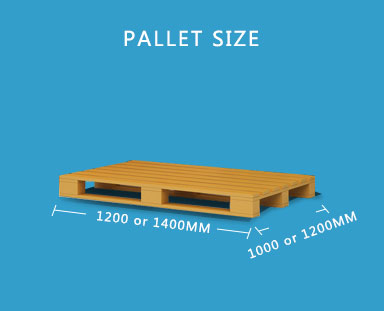

Recommended pallet size：1200x1000mm, 1400x1200mm
Connect with case packer Q'ty：Maximum 3 sets
Speed of palletizing：Maximum 15 times/min
Empty pallet storage：8 pallets
Rated power：AC380V, 50/60Hz, three-phase five-wire, 6KW
Compressed air：0.6-0.8Mpa，100L/min
Other optional devices：Shrink wrapping machine, working guard-rail
