Technical Parameters

Applied substrate：Spunlace nonwoven and other facial mask substrate

Substrate specifications：Nonwoven maximum Φ1200mm Width 300mm, Liner maximum Φ600mm Width 300mm

Substrate quantity：2 rolls of facial mask substrate, 2 rolls of liner, on line auto splicing

Applied packaging：PET/PE，BOPP/PE，PET\AL\PE laminated film and other heat-seal materials preformed sachet

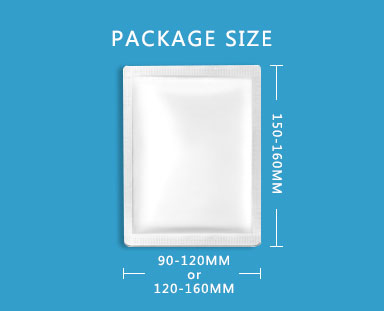

Packaging size：W90-120mm or W120-160mm, L150-160mm (otherwise indicated)

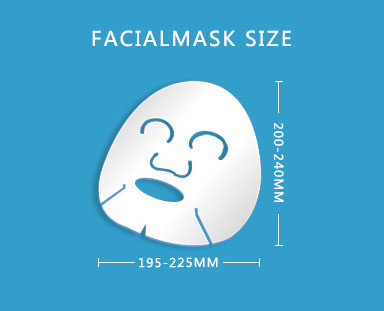

Facial mask size：L195-225mm, W200-240mm (otherwise indicated)

Facial mask die cutting roller size：φ149mm, W340mm (otherwise indicated)

Side trim：Minimum side trim 10mm for each side

Scrap edge recycle：Facial mask substrate and liner substrate recyclable

Folding type：Two/three times cross fold (customizable)

Recommended packing free space：Minimum top seal free space 30mm, left & right 25mm each side

Packing detection：Packing fault alarm and stop machine

Splicing joint detection：Substrate splicing joint automatic detection

Liquid adding range：0-50ml

Liquid adding detection：Do not fill liquid without package

Production speed：Maximum 90pcs/min

Automatic counting：Can be set and connected to box packer

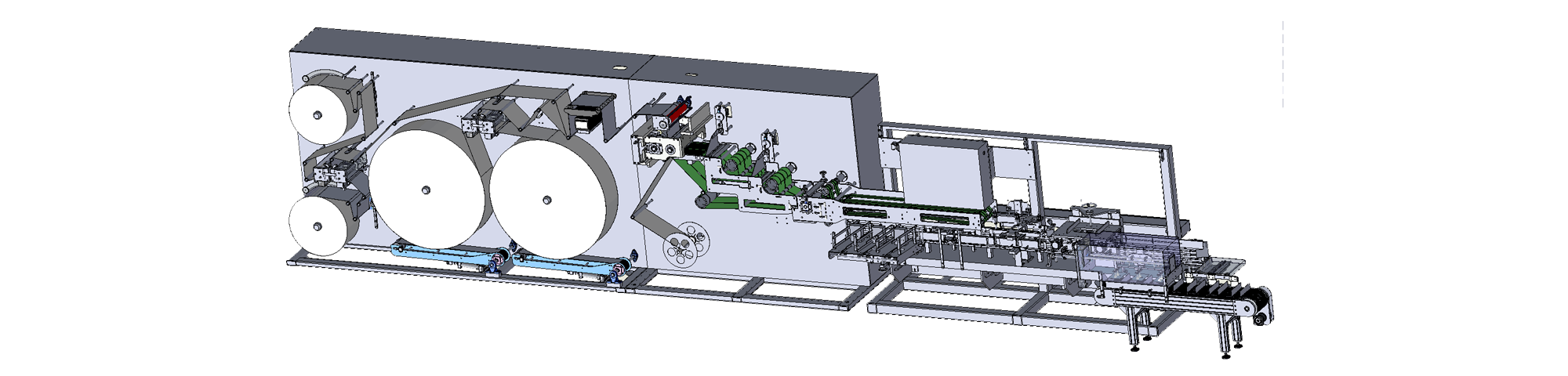

External dimension：L10450mm, W1600mm, H2400mm

Rated power：AC380V, 50/60Hz, three-phase five-wire, 15KW

Compressed air：0.6-0.8MPa, 200L/min

Net weight：About 10000KGS
